Hiace

Price

Available Options

Standard Roof (Diesel)

Ex Lahore Price

(Order Intake on Hold)

Hiace

Standard Roof Dual AC (Diesel)

Ex Lahore Price

(Order Intake on Hold)

Hiace

Standard Roof Dual AC (Gasoline)

Ex Lahore Price

(Order Intake on Hold)

Hiace

High Roof Dual AC (Diesel)

Ex Lahore Price

(Order Intake on Hold)

	Engine	Petrol Models	Diesel Models
	Body type	MID ROOF	STD ROOF	HIGH ROOF
	Katashiki	TRH213R-JEMDK	TRH203R-REMDK	KDH202R-REMDY	KDH222R-LEMDY
	Suffix	TR-A2	TR-A1	TR-01	KDH- 08	KDH- 09	KDH- 10
	Variants	With A/C	Without A/C	With A/C
Major Dimensions & Weight
Overall	Length (mm)	4840	4695	5380
Width (mm)	1880	1695	1880
Height (mm)	2105	1980	2285
Wheelbase	(mm)	2570	2570	3110
Tread	Front (mm)	1655	1470	1655
Rear (mm)	1650	1465	1650
Overhang	Front (mm)	1190	1050	1190
Rear (mm)	1080	1075	1080
Min. Running Ground Clearance	(mm)	185
Fuel Tank Capacity	Ltr	70
Seating Capacity	(persons)	16	15	16
Engine
Engine Model Code		2TR-FE	2KD-FTV
No. of Cyls & Arrangement		4 Cylinders, In line
Displacement	(cm³)	2694	2494
Compression Ratio		9.6	18.5
Fuel System		EFI	Common Rail Type
Valve mechanism		16 Valve DOHC with VVT-i	16 Valve DOHC
Intake system		Naturally Aspirated	Turbocharger
Max. Output	(kW/RPM)	111/4800	75/3600
Max. Torque	(Nm/RPM)	241/3800	260/1600-2400
Emission Certification		EURO II
Brake Type	Front	Ventilated Disc Brakes
Rear	Leading-Trailing Drum Brakes

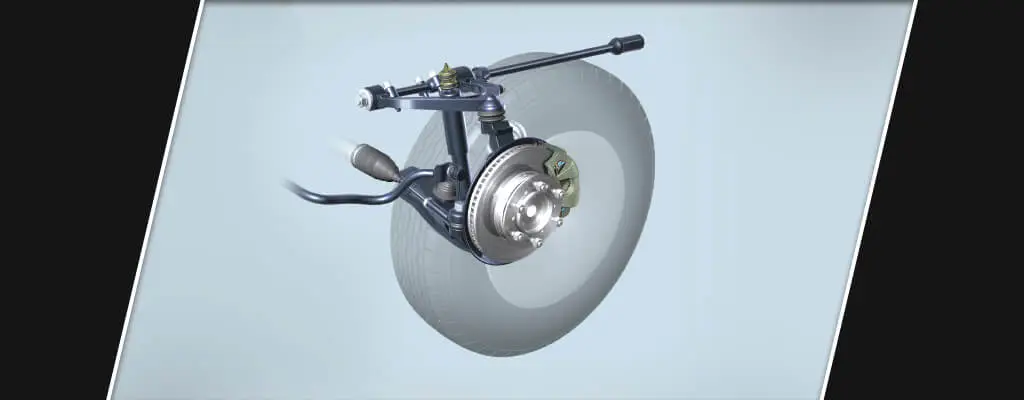

Suspension Type	Front	Double Wishbone

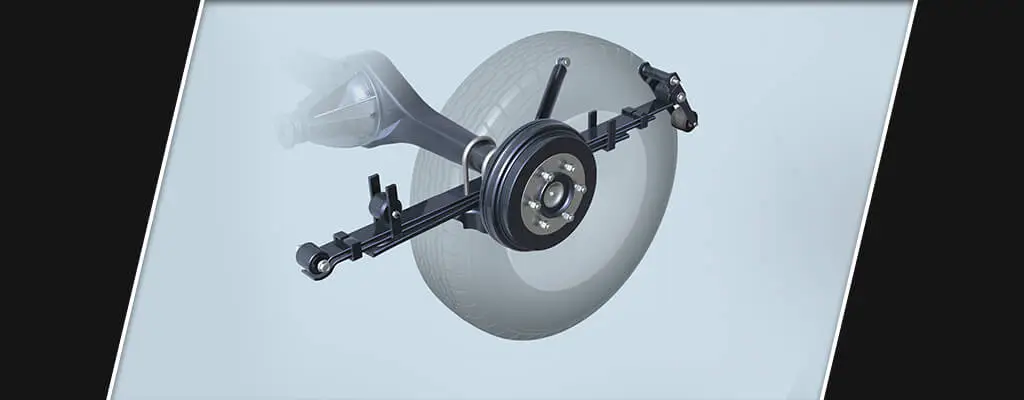

Rear	Leaf Spring Rigid Axle
Power Steering Type		Hydraulic
Exterior
Tyres & Disc Wheels		195/R15C

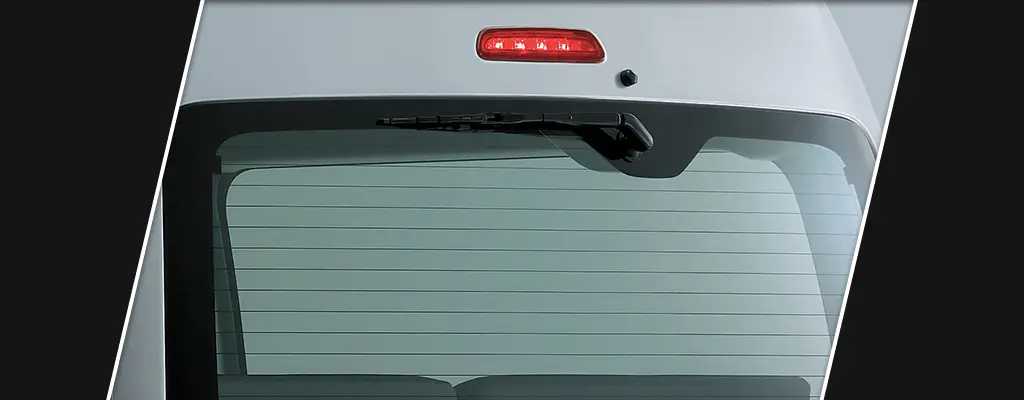

Rear Window Wiper		Intermittent
Outside Rear View Mirrors		o

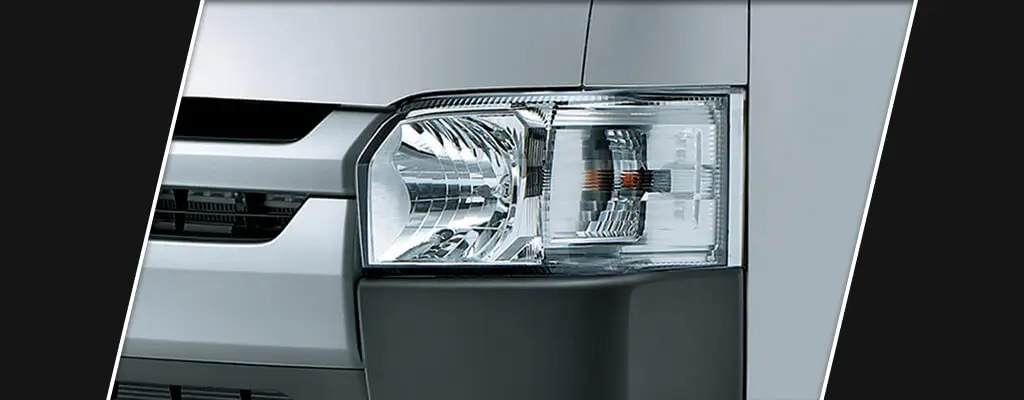

Headlamps		Halogen
Mud Guards		o

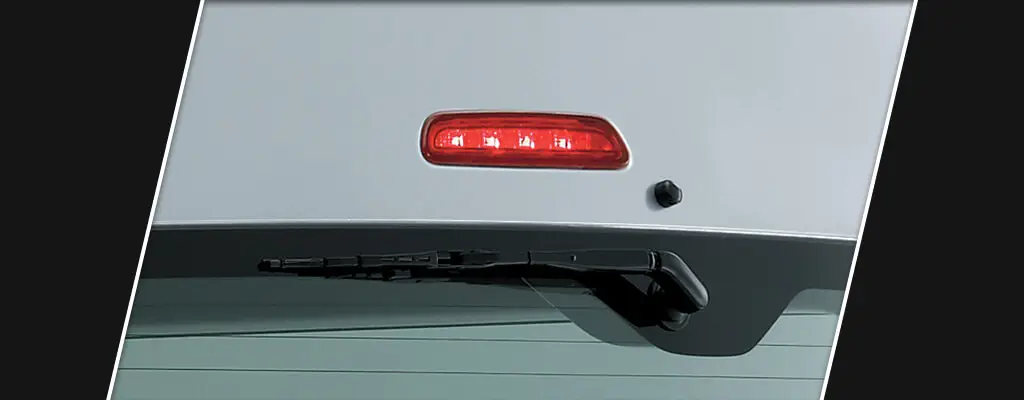

High Mount Stop Lamp		With LED
Wheel Caps		Full Cap
Spare Tyre		Ground Tyre
Interior

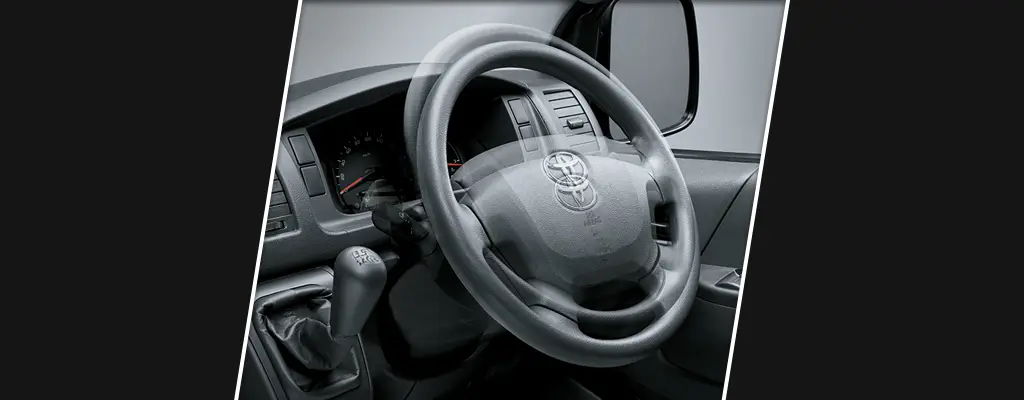

Steering wheel		4-Spoke Urethane
Inside Rear View Mirror		Day & Night
Rear Window Defogger		With Timer

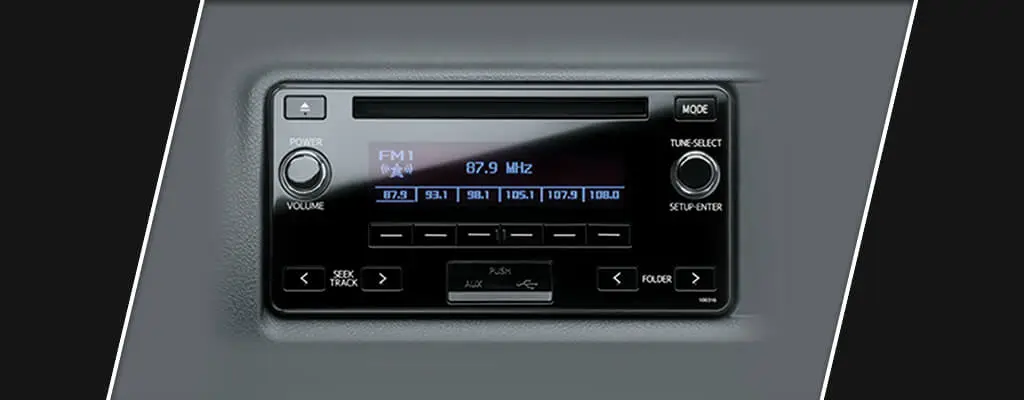

Audio		AM/FM, USB, 2SP
Console Box		Center Seat Back with 2 Cup Holders
Room Lamps		Front (1), Rear (1) W/Switches	Front (1), Rear (2) W/Switches

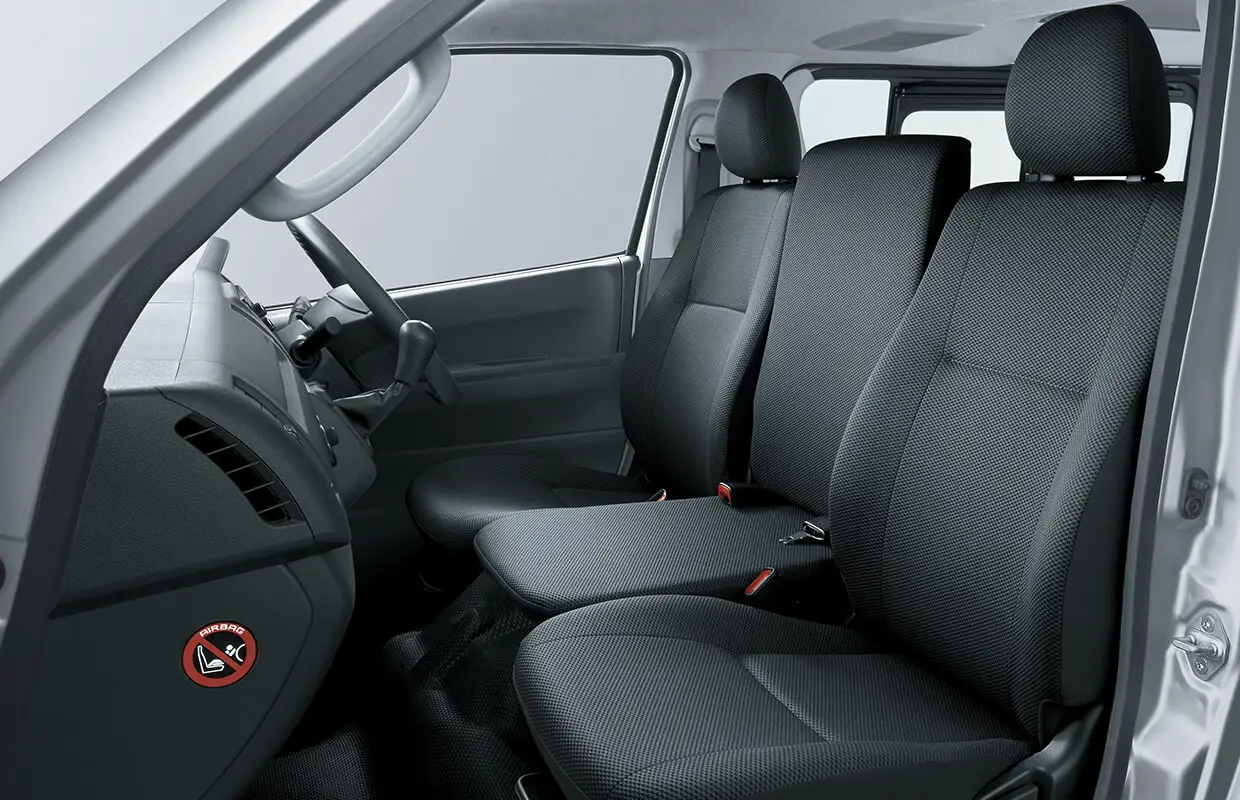

Seat Material		Fabric	Vinyl Leather	Fabric

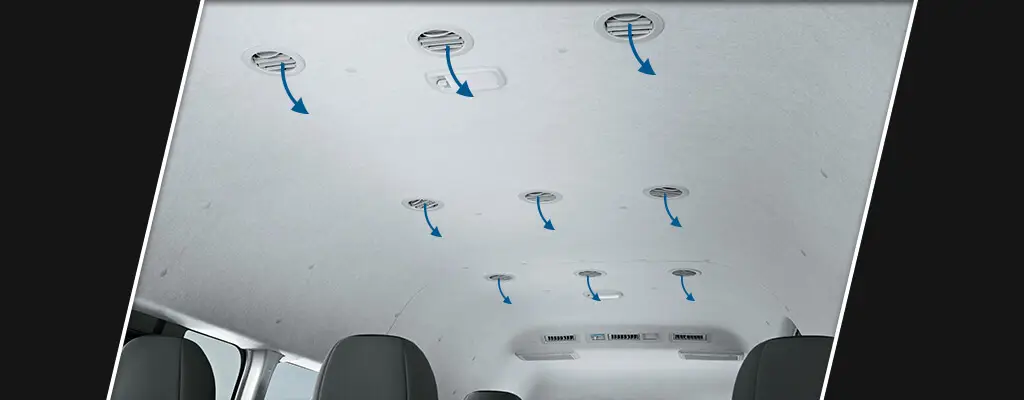

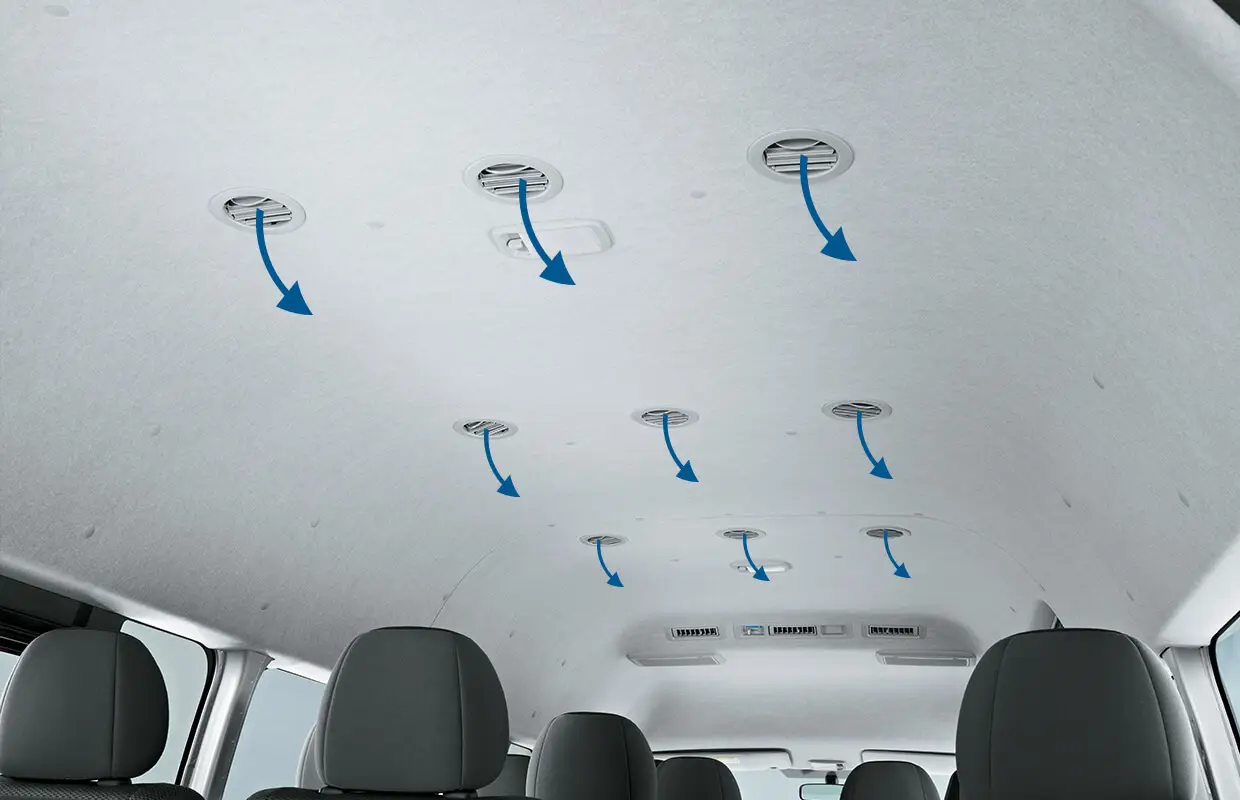

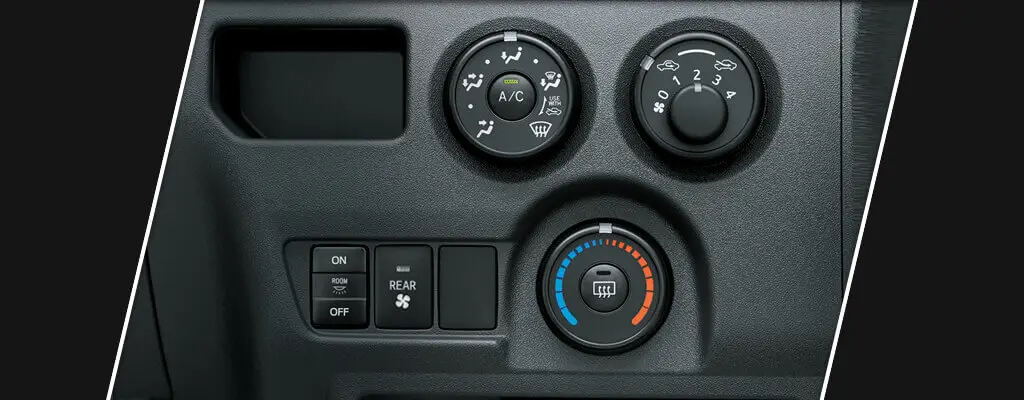

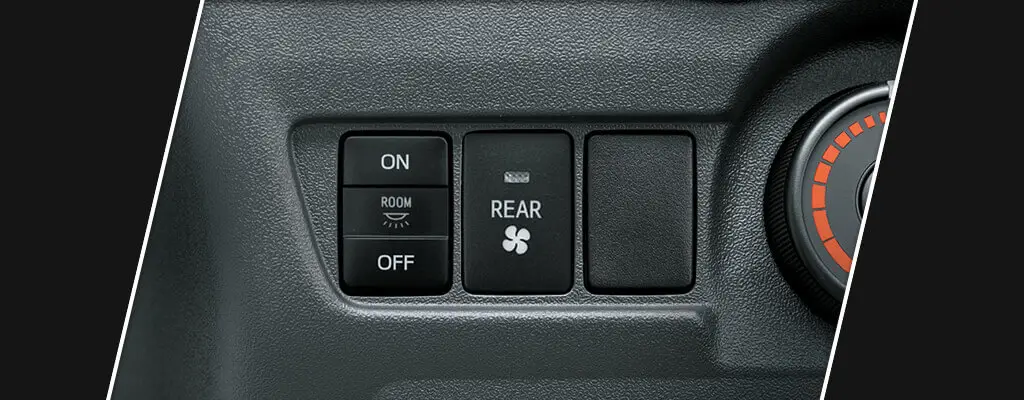

Dual Air Conditioner		o	x	o
Heater	Front	o
Rear	x	o

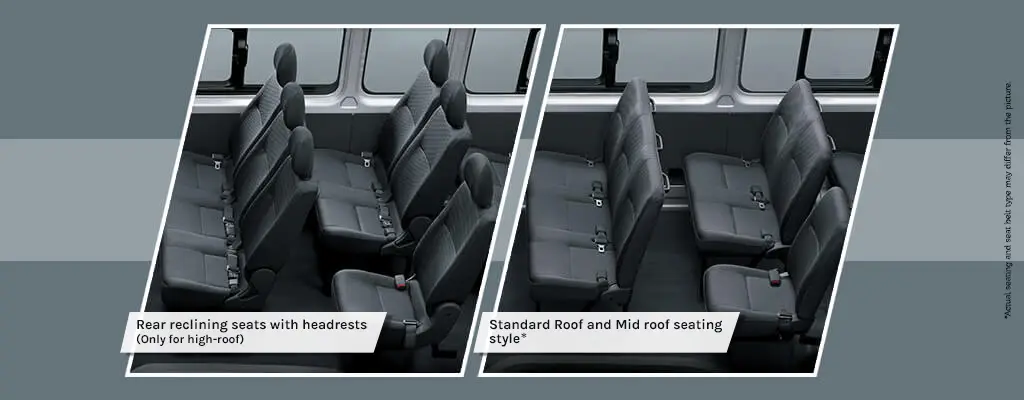

Rear Headrests		x	o
Steering Column		Manual Tilt
Power Steering		o
Cup Holders		FR:2
Ash Tray		o
Glove Box		Upper:1 Lower:1	Lower:1
Front Headrest		o
Front Seat Reclining		D+P
Rear Seat Adjuster		x	o
Clock		Built-In-Meter
Accessory Connector		DC12V
Assist Grip		FR:3 Slide Door:1	FR:3	FR:3 Slide Door:1
Seat Assist Grip		o
Step Lamp		o	x	o
Sun Visors		D+P
Safety

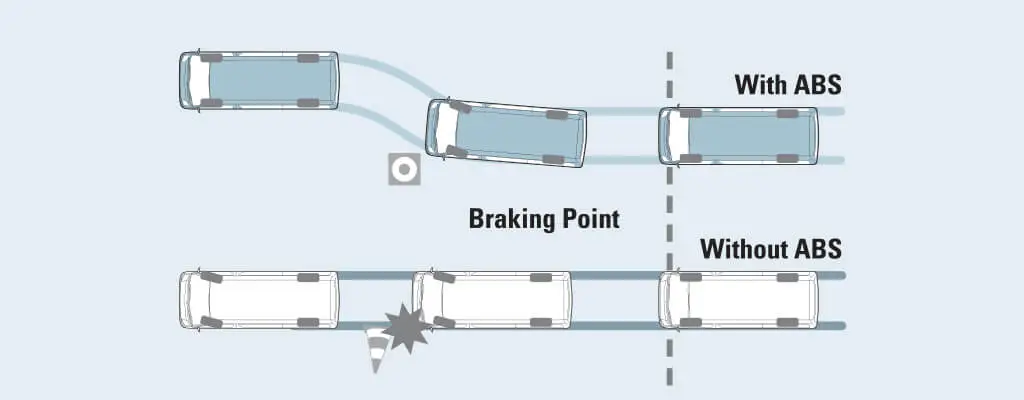

ABS		x	o
Air Bag System		x	D+P

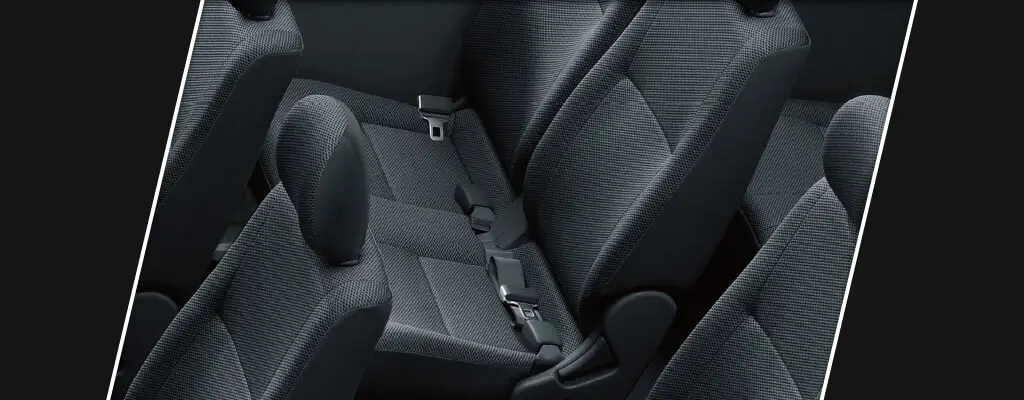

Seat Belts	Front	3P ELRx2 2P NRx1	3P ELRx2 (D+P: Pretensioner) 2P NRx1
Rear	13x (2-Point Type)	11x (2-Point Type)	13x (2-Point Type)
Light Remind Warning		With Buzzer
Key Remind Warning		With Buzzer

	Engine	Petrol Models	Diesel Models
	Body type	MID ROOF	STD ROOF	HIGH ROOF
	Katashiki	TRH213R-JEMDK	TRH203R-REMDK	KDH202R-REMDY	KDH222R-LEMDY
	Suffix	TR-A2	TR-A1	TR-01	KDH- 08	KDH- 09	KDH- 10
	Variants	With A/C	Without A/C	With A/C
Major Dimensions & Weight
Overall	Length (mm)	4840	4695	5380
Width (mm)	1880	1695	1880
Height (mm)	2105	1980	2285
Wheelbase	(mm)	2570	2570	3110
Tread	Front (mm)	1655	1470	1655
Rear (mm)	1650	1465	1650
Overhang	Front (mm)	1190	1050	1190
Rear (mm)	1080	1075	1080
Min. Running Ground Clearance	(mm)	185
Fuel Tank Capacity	Ltr	70
Seating Capacity	(persons)	16	15	16
Engine
Engine Model Code		2TR-FE	2KD-FTV
No. of Cyls & Arrangement		4 Cylinders, In line
Displacement	(cm³)	2694	2494
Compression Ratio		9.6	18.5
Fuel System		EFI	Common Rail Type
Valve mechanism		16 Valve DOHC with VVT-i	16 Valve DOHC
Intake system		Naturally Aspirated	Turbocharger
Max. Output	(kW/RPM)	111/4800	75/3600
Max. Torque	(Nm/RPM)	241/3800	260/1600-2400
Emission Certification		EURO II
Brake Type	Front	Ventilated Disc Brakes
Rear	Leading-Trailing Drum Brakes
Suspension Type	Front	Double Wishbone
Rear	Leaf Spring Rigid Axle
Power Steering Type		Hydraulic
Exterior
Tyres & Disc Wheels		195/R15C
Rear Window Wiper		Intermittent
Outside Rear View Mirrors		o
Headlamps		Halogen
Mud Guards		o
High Mount Stop Lamp		With LED
Wheel Caps		Full Cap
Spare Tyre		Ground Tyre
Interior
Steering wheel		4-Spoke Urethane
Inside Rear View Mirror		Day & Night
Rear Window Defogger		With Timer
Audio		AM/FM, USB, 2SP
Console Box		Center Seat Back with 2 Cup Holders
Room Lamps		Front (1), Rear (1) W/Switches	Front (1), Rear (2) W/Switches
Seat Material		Fabric	Vinyl Leather	Fabric
Dual Air Conditioner		o	x	o
Heater	Front	o
Rear	x	o
Rear Headrests		x	o
Steering Column		Manual Tilt
Power Steering		o
Cup Holders		FR:2
Ash Tray		o
Glove Box		Upper:1 Lower:1	Lower:1
Front Headrest		o
Front Seat Reclining		D+P
Rear Seat Adjuster		x	o
Clock		Built-In-Meter
Accessory Connector		DC12V
Assist Grip		FR:3 Slide Door:1	FR:3	FR:3 Slide Door:1
Seat Assist Grip		o
Step Lamp		o	x	o
Sun Visors		D+P
Safety
ABS		x	o
Air Bag System		x	D+P
Seat Belts	Front	3P ELRx2 2P NRx1	3P ELRx2 (D+P: Pretensioner) 2P NRx1
Rear	13x (2-Point Type)	11x (2-Point Type)	13x (2-Point Type)
Light Remind Warning		With Buzzer
Key Remind Warning		With Buzzer

	Engine	Petrol Models	Diesel Models
	Body type	MID ROOF	STD ROOF	HIGH ROOF
	Katashiki	TRH213R-JEMDK	TRH203R-REMDK	KDH202R-REMDY	KDH222R-LEMDY
	Suffix	TR-A2	TR-A1	TR-01	KDH- 08	KDH- 09	KDH- 10
	Variants	With A/C	Without A/C	With A/C
Major Dimensions & Weight
Overall	Length (mm)	4840	4695	5380
Width (mm)	1880	1695	1880
Height (mm)	2105	1980	2285
Wheelbase	(mm)	2570	2570	3110
Tread	Front (mm)	1655	1470	1655
Rear (mm)	1650	1465	1650
Overhang	Front (mm)	1190	1050	1190
Rear (mm)	1080	1075	1080
Min. Running Ground Clearance	(mm)	185
Fuel Tank Capacity	Ltr	70
Seating Capacity	(persons)	16	15	16
Engine
Engine Model Code		2TR-FE	2KD-FTV
No. of Cyls & Arrangement		4 Cylinders, In line
Displacement	(cm³)	2694	2494
Compression Ratio		9.6	18.5
Fuel System		EFI	Common Rail Type
Valve mechanism		16 Valve DOHC with VVT-i	16 Valve DOHC
Intake system		Naturally Aspirated	Turbocharger
Max. Output	(kW/RPM)	111/4800	75/3600
Max. Torque	(Nm/RPM)	241/3800	260/1600-2400
Emission Certification		EURO II
Brake Type	Front	Ventilated Disc Brakes
Rear	Leading-Trailing Drum Brakes
Suspension Type	Front	Double Wishbone
Rear	Leaf Spring Rigid Axle
Power Steering Type		Hydraulic
Exterior
Tyres & Disc Wheels		195/R15C
Rear Window Wiper		Intermittent
Outside Rear View Mirrors		o
Headlamps		Halogen
Mud Guards		o
High Mount Stop Lamp		With LED
Wheel Caps		Full Cap
Spare Tyre		Ground Tyre
Interior
Steering wheel		4-Spoke Urethane
Inside Rear View Mirror		Day & Night
Rear Window Defogger		With Timer
Audio		AM/FM, USB, 2SP
Console Box		Center Seat Back with 2 Cup Holders
Room Lamps		Front (1), Rear (1) W/Switches	Front (1), Rear (2) W/Switches
Seat Material		Fabric	Vinyl Leather	Fabric
Dual Air Conditioner		o	x	o
Heater	Front	o
Rear	x	o
Rear Headrests		x	o
Steering Column		Manual Tilt
Power Steering		o
Cup Holders		FR:2
Ash Tray		o
Glove Box		Upper:1 Lower:1	Lower:1
Front Headrest		o
Front Seat Reclining		D+P
Rear Seat Adjuster		x	o
Clock		Built-In-Meter
Accessory Connector		DC12V
Assist Grip		FR:3 Slide Door:1	FR:3	FR:3 Slide Door:1
Seat Assist Grip		o
Step Lamp		o	x	o
Sun Visors		D+P
Safety
ABS		x	o
Air Bag System		x	D+P
Seat Belts	Front	3P ELRx2 2P NRx1	3P ELRx2 (D+P: Pretensioner) 2P NRx1
Rear	13x (2-Point Type)	11x (2-Point Type)	13x (2-Point Type)
Light Remind Warning		With Buzzer
Key Remind Warning		With Buzzer

	Engine	Petrol Models	Diesel Models
	Body type	MID ROOF	STD ROOF	HIGH ROOF
	Katashiki	TRH213R-JEMDK	TRH203R-REMDK	KDH202R-REMDY	KDH222R-LEMDY
	Suffix	TR-A2	TR-A1	TR-01	KDH- 08	KDH- 09	KDH- 10
	Variants	With A/C	Without A/C	With A/C
Major Dimensions & Weight
Overall	Length (mm)	4840	4695	5380
Width (mm)	1880	1695	1880
Height (mm)	2105	1980	2285
Wheelbase	(mm)	2570	2570	3110
Tread	Front (mm)	1655	1470	1655
Rear (mm)	1650	1465	1650
Overhang	Front (mm)	1190	1050	1190
Rear (mm)	1080	1075	1080
Min. Running Ground Clearance	(mm)	185
Fuel Tank Capacity	Ltr	70
Seating Capacity	(persons)	16	15	16
Engine
Engine Model Code		2TR-FE	2KD-FTV
No. of Cyls & Arrangement		4 Cylinders, In line
Displacement	(cm³)	2694	2494
Compression Ratio		9.6	18.5
Fuel System		EFI	Common Rail Type
Valve mechanism		16 Valve DOHC with VVT-i	16 Valve DOHC
Intake system		Naturally Aspirated	Turbocharger
Max. Output	(kW/RPM)	111/4800	75/3600
Max. Torque	(Nm/RPM)	241/3800	260/1600-2400
Emission Certification		EURO II
Brake Type	Front	Ventilated Disc Brakes
Rear	Leading-Trailing Drum Brakes
Suspension Type	Front	Double Wishbone
Rear	Leaf Spring Rigid Axle
Power Steering Type		Hydraulic
Exterior
Tyres & Disc Wheels		195/R15C
Rear Window Wiper		Intermittent
Outside Rear View Mirrors		o
Headlamps		Halogen
Mud Guards		o
High Mount Stop Lamp		With LED
Wheel Caps		Full Cap
Spare Tyre		Ground Tyre
Interior
Steering wheel		4-Spoke Urethane
Inside Rear View Mirror		Day & Night
Rear Window Defogger		With Timer
Audio		AM/FM, USB, 2SP
Console Box		Center Seat Back with 2 Cup Holders
Room Lamps		Front (1), Rear (1) W/Switches	Front (1), Rear (2) W/Switches
Seat Material		Fabric	Vinyl Leather	Fabric
Dual Air Conditioner		o	x	o
Heater	Front	o
Rear	x	o
Rear Headrests		x	o
Steering Column		Manual Tilt
Power Steering		o
Cup Holders		FR:2
Ash Tray		o
Glove Box		Upper:1 Lower:1	Lower:1
Front Headrest		o
Front Seat Reclining		D+P
Rear Seat Adjuster		x	o
Clock		Built-In-Meter
Accessory Connector		DC12V
Assist Grip		FR:3 Slide Door:1	FR:3	FR:3 Slide Door:1
Seat Assist Grip		o
Step Lamp		o	x	o
Sun Visors		D+P
Safety
ABS		x	o
Air Bag System		x	D+P
Seat Belts	Front	3P ELRx2 2P NRx1	3P ELRx2 (D+P: Pretensioner) 2P NRx1
Rear	13x (2-Point Type)	11x (2-Point Type)	13x (2-Point Type)
Light Remind Warning		With Buzzer
Key Remind Warning		With Buzzer

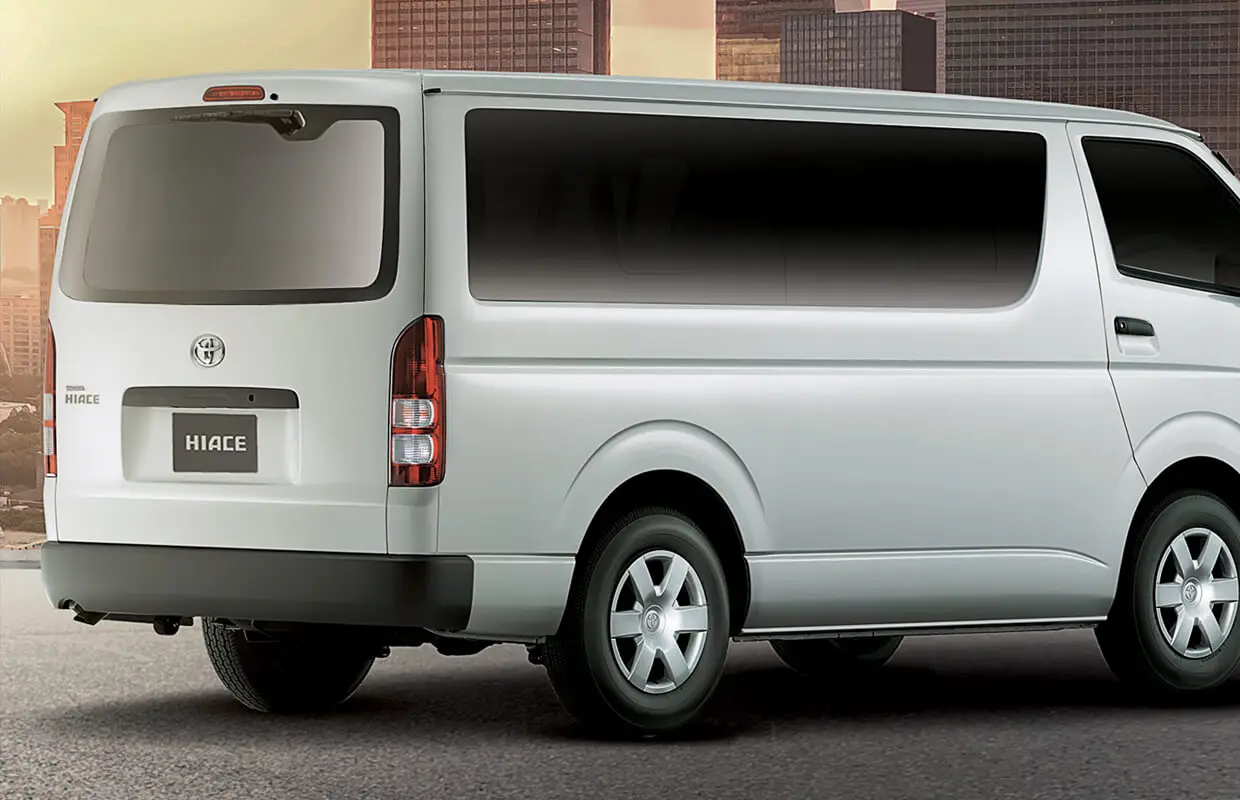

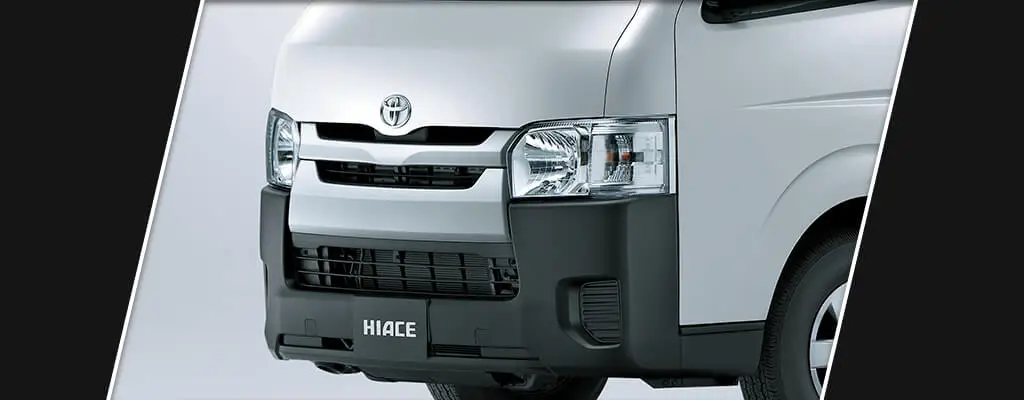

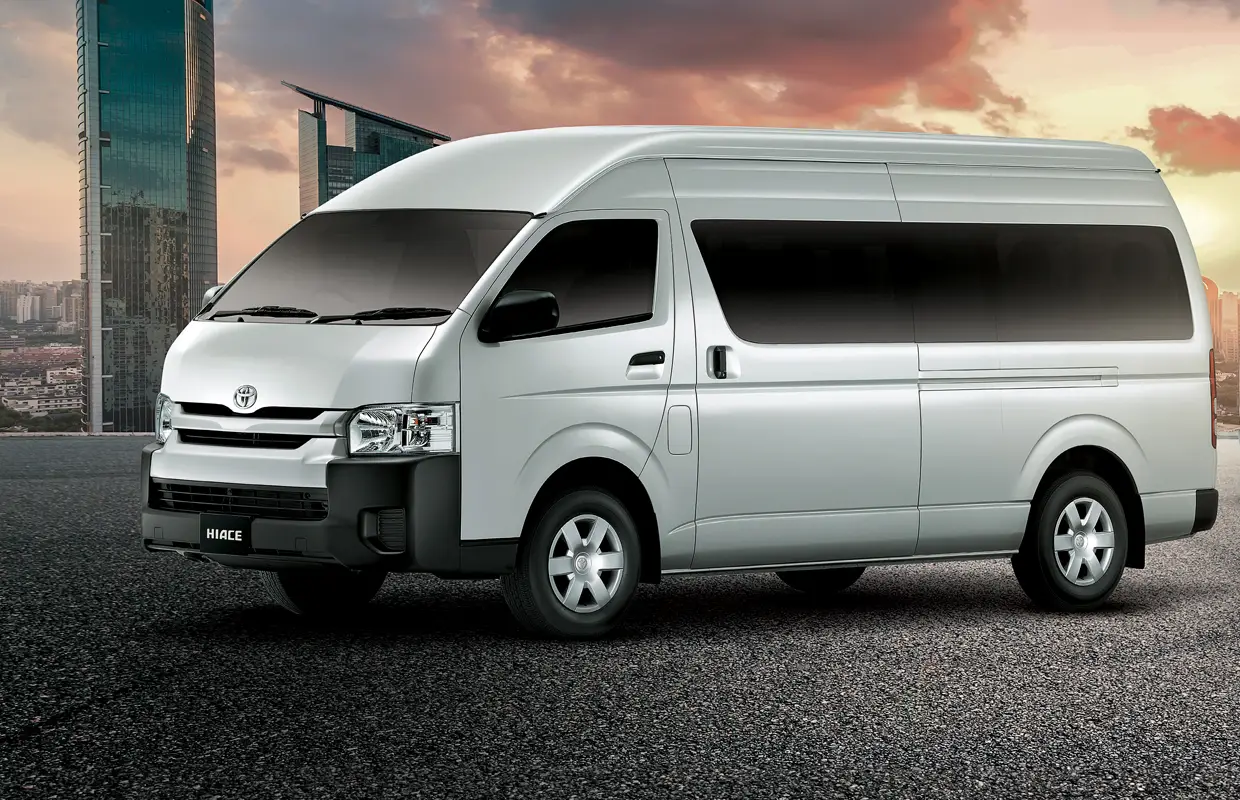

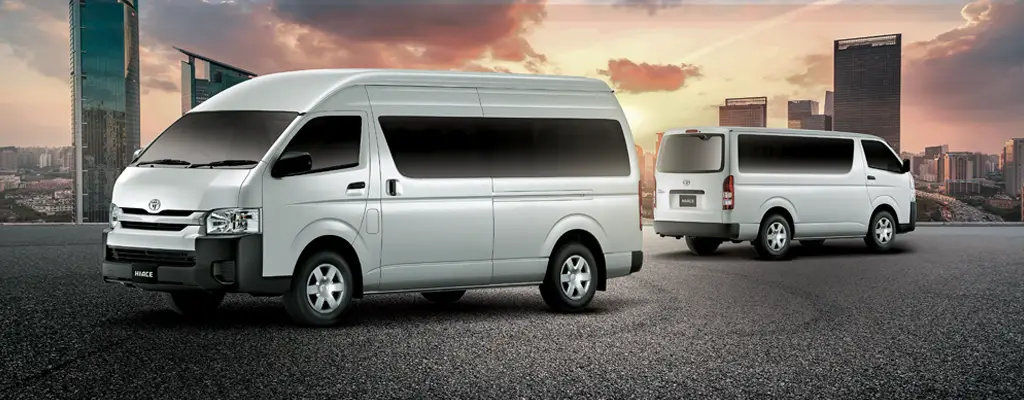

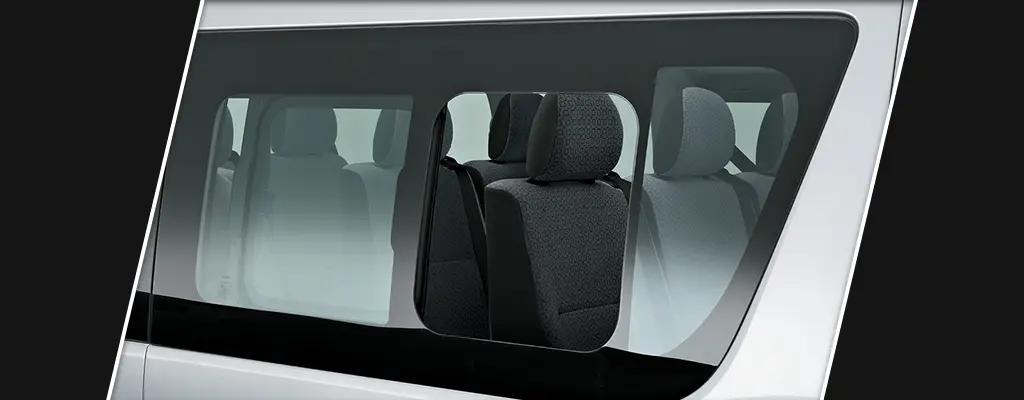

Exterior

A Consistent Breakthrough Performer

A heritage of proven performance with sleek styling and the enhanced capacity of a Wide and Super Long Body.

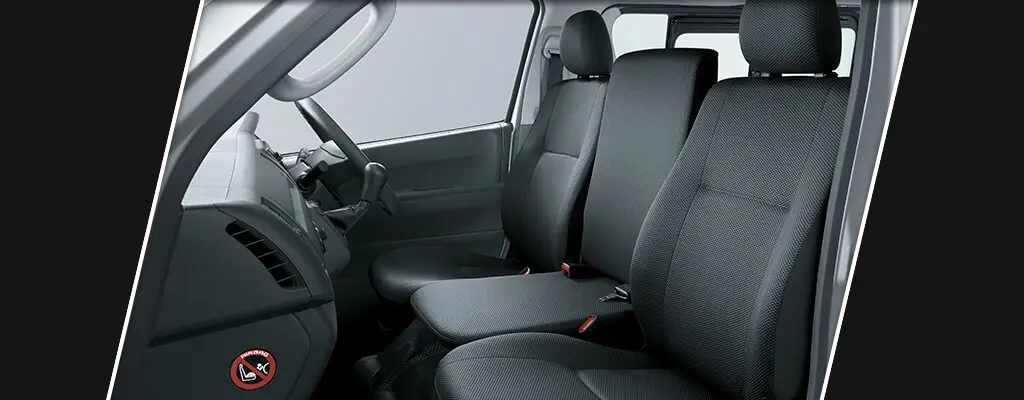

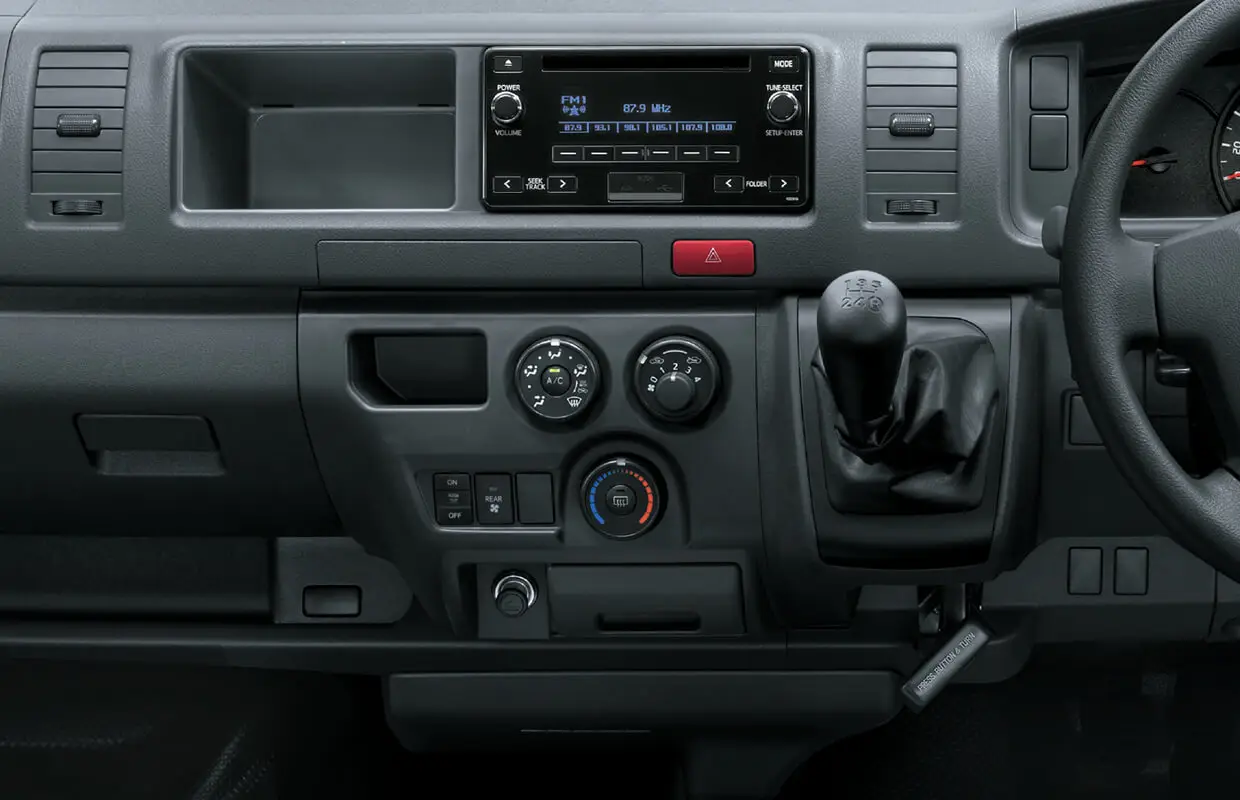

Interior

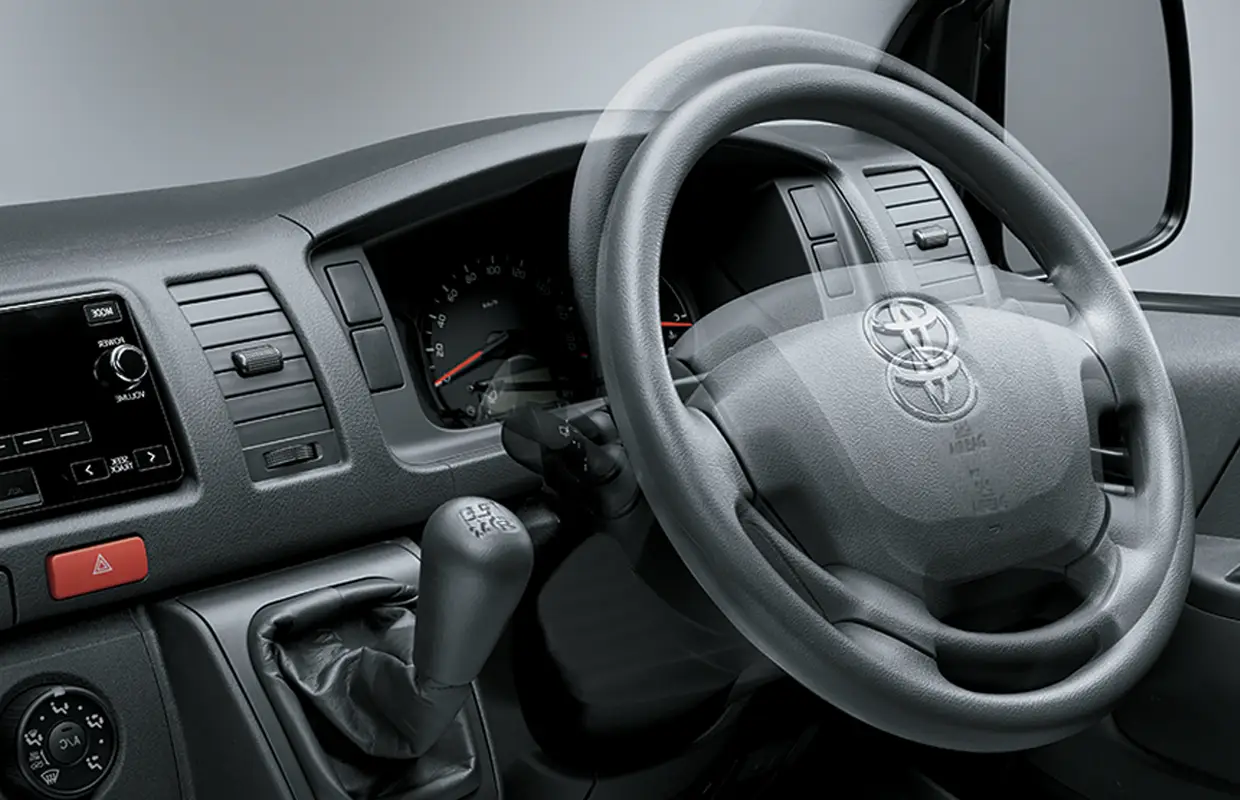

Intelligent Design for Easy Driving

Intelligent design assures improved control and driving ease at all times. Essentials, indicators and switches are positioned for maximum visibility and intuitive operation and the panel-mounted shift lever allows pass-through access from either side of the cabin.

Performance

Powerful and Fuel Efficient Engine

Choose from the powerful acceleration of a 2TR-FE, 2.7L Petrol Engine, 2694cc, 16 Valve DOHC with VVT-i, or a 2KD-FTV, Diesel engine, 2494cc, 16 Valve DOHC.
